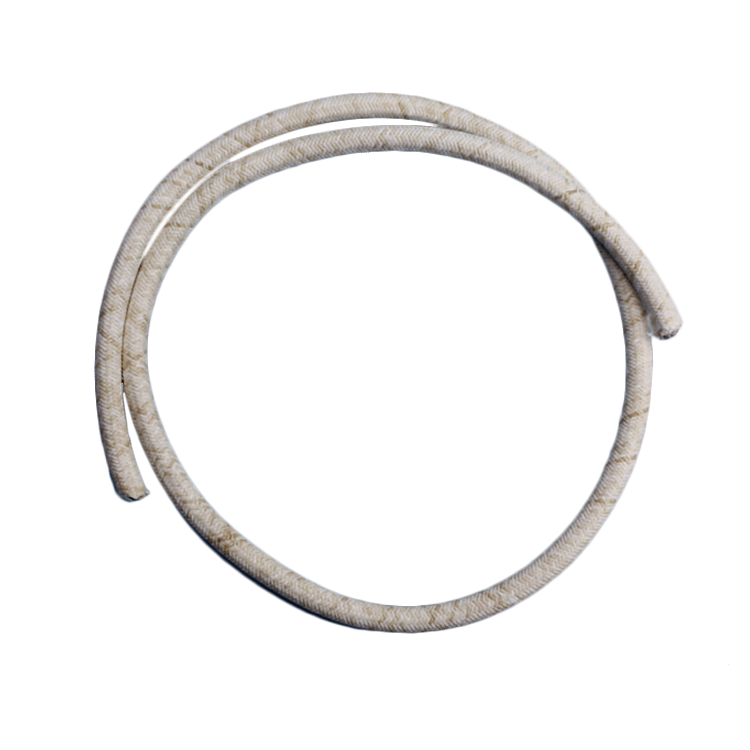

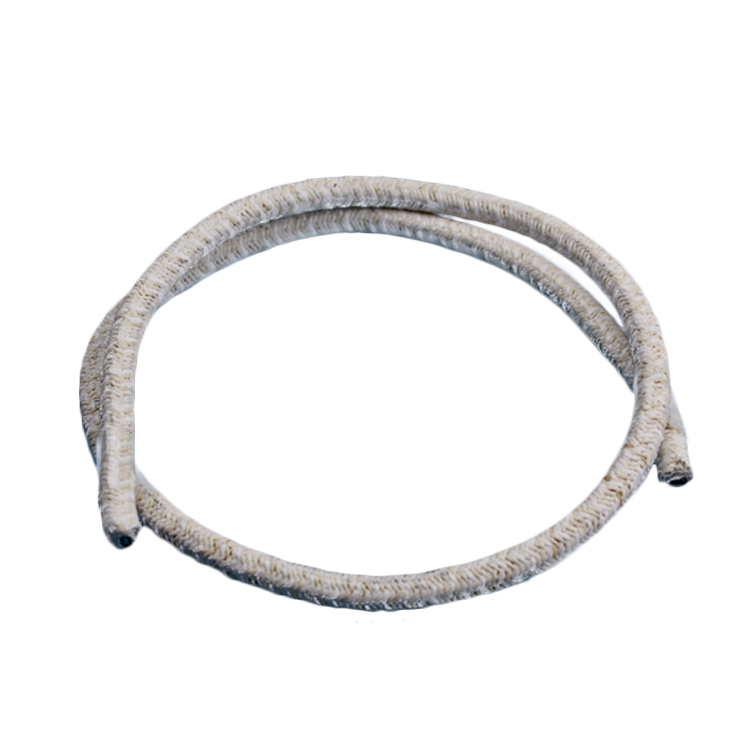

High Temperature Wire 500℃ GN500-03

Model：GN500-03
Brand：

1. Rated voltage: 500V
2. Temperature: 450 ℃
3. Conductor: Pure nickel were
4. Insulation: Glass fiber woven + mica film enlace
5. Color: white， blue， red， black， brown， yellow， green， yellow-green

Section
（ mm 2 ）

Conductor
Strand/Diameter （ mm ）

Insulation thickness
（ mm ）

Finished Diameter
（ mm ）

Package
（ m ）

0.5

7 × 0.30

0.5

2.3 ± 0.3

200

0.75

11 × 0.30

0.5

2.5 ± 0.3

200

1

14 × 0.30

0.5

2.6 ± 0.3

200

1.2

40 × 0.19

0.5

2.7 ± 0.3

100

1.5

21 × 0.30

0.5

2.9 ± 0.3

100

2

28 × 0.30

0.6

3.3 ± 0.5

100

2.5

35 × 0.30

0.6

3.6 ± 0.5

100

4

56 × 0.30

0.8

4.7 ± 0.5

100

6

84 × 0.30

0.8

5.5 ± 0.5

100

10

84 × 0.40

0.8

6.6 ± 0.5

100

16

228 × 0.30

0.8

7.8 ± 0.5

100

25

361 × 0.30

0.8

9.5 ± 0.5

100

35

494 × 0.30

1.0

11.2 ± 1.0

100

50

703 × 0.30

1.2

13.2 ± 1.0

100

70

988 × 0.30

1.2

15.4 ± 1.0

100

95

760 × 0.40

1.2

`

100


Fixed installation, plus flame combustion, no harmful toxic gases. This product is used as wire and cable in special condition of metallurgical, thermal, petroleum, chemical, natural gas, kerosene and others, and in several electrical devices that required fire-protection performance.
